OUTPUT CHARACTERISTICS
参数
ENVIRONMENTAL AND UTILITY REQUIREMENTS
DIMENSIONS
特点

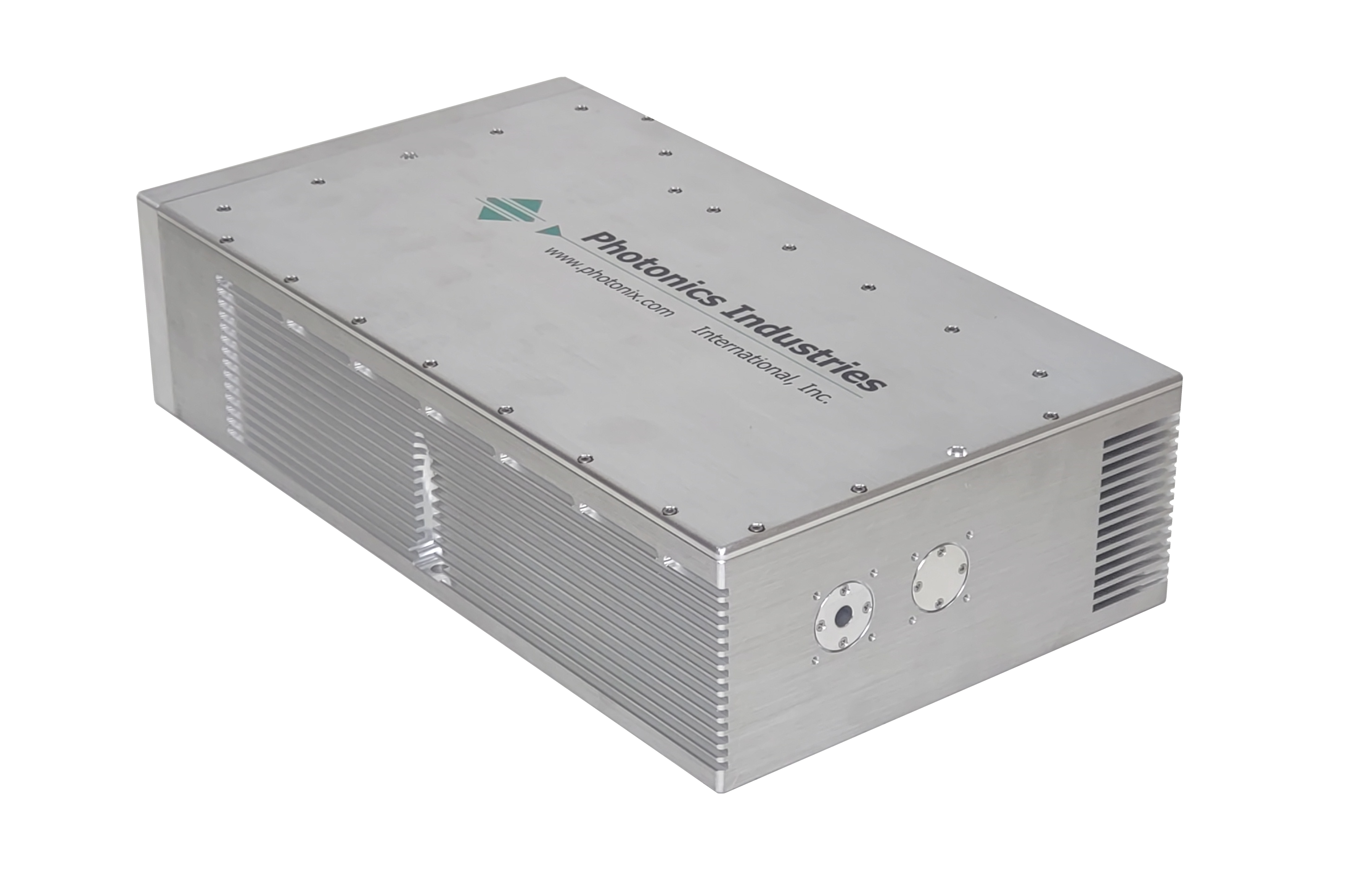

| Model | RX-532-5 | RX-532-20 | RX-532-35 | RX-532-48 | RX-532-70 |
|---|---|---|---|---|---|
| Wavelength | 532 nm | ||||
| Average Power | 5W@100 kHz | 20W@100 kHz | 35W** | 48W** | 70W** |
| Pulse Width | ~7ps | ||||
| Repetition Rate† | Single shot to 2MHz (Option to 8MHz) | ||||
| Pulse to Pulse Stability @ 1 MHz | < 2% rms | ||||
| Spatial Mode | TEM00 M2≤1.3 | ||||
| Beam Pointing Stability | < 20 urad/oC | ||||
| Long Term Power Stability (8h±3 °C) | < ±1% rms | ||||
† Lower rep rates (down to single shot) achieved by selecting higher rep rate pulses with the AOM. Option to 8MHz
‡ Measured at 1064 nm
** Rep rate specified depend on –L, -M or –H optimization desired (see performance curves)
