SN UV Series

零售价
0.0
市场价
0.0
浏览量:
1000
数量
-
+
库存:
0
OUTPUT CHARACTERISTICS
参数
ENVIRONMENTAL AND UTILITY REQUIREMENTS
DIMENSIONS
特点
Model SN-355-5 SN-355-15 SN-355-25 SN-355-35
Average Power (@ 100kHz) 5W 15W 25W 35W
Pulse width (nominal) ~300ps, specifiable from 45ps to 1ns
Repetition Rate * Single shot to 8MHz
Spatial Mode TEM00 M²<1.3
Output Beam Diameter ~2mm (Nominal)
Beam divergence <1.5 mrad
Beam Point Stability <50 urad

*Lower rep rate (down to single shot) achieved by selecting higher rep rate pulses with the AOM.

未找到相应参数组,请于后台属性模板中添加
Model SN-355-5 SN-355-15 SN-355-25 SN-355-35
Ambient Temperature 15°C to 30°C (59° to 86°F) Operating Range
Relative Humidity Non-condensing, 90% Max
Cooling Closed Loop Chiller
Model SN-355-5 SN-355-15 SN-355-25 SN-355-35
Laser Head Dimensions 10" (W) x 3.75" (H) x 24" (D) 12" (W) x 3.75" (H) x 24" (D)

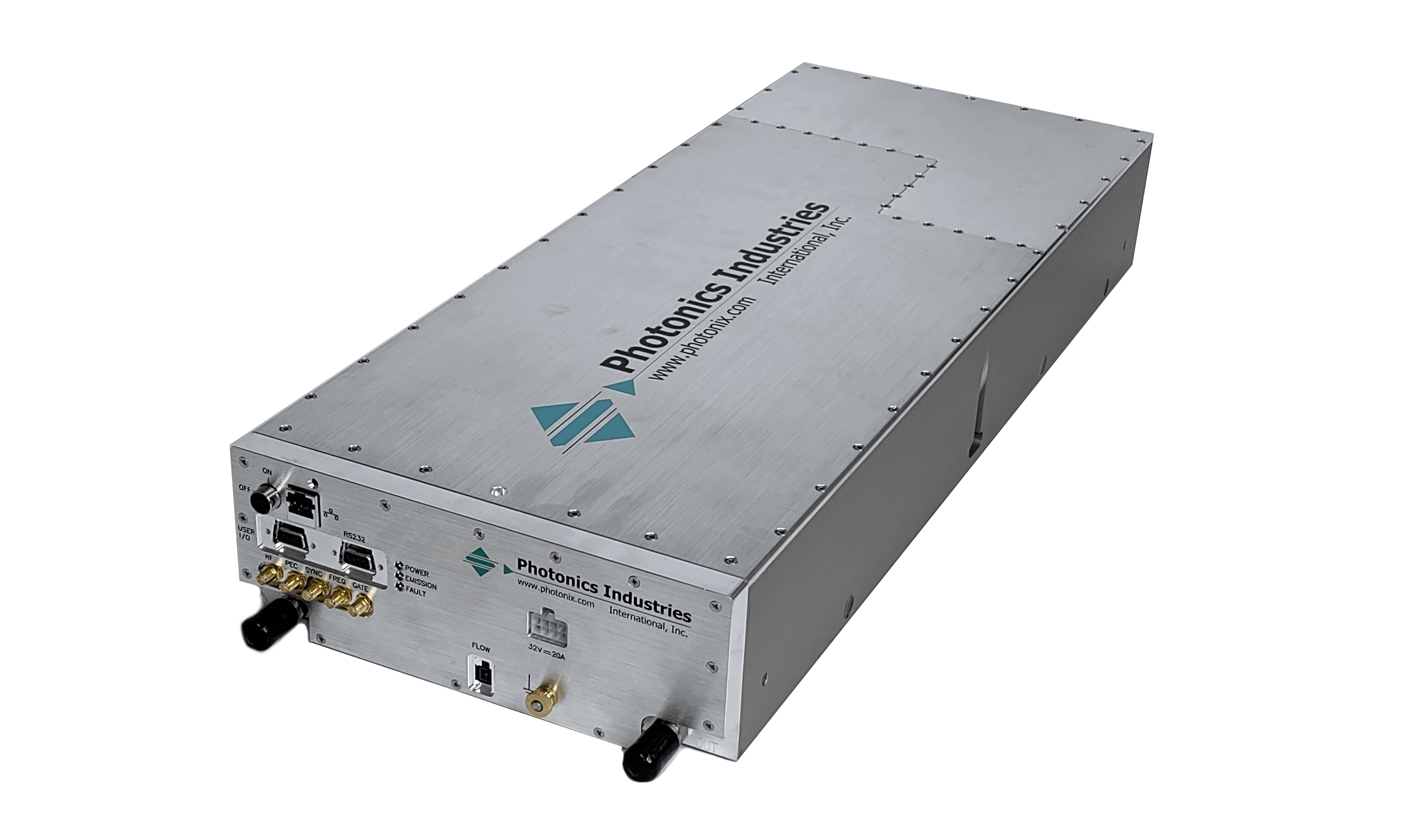

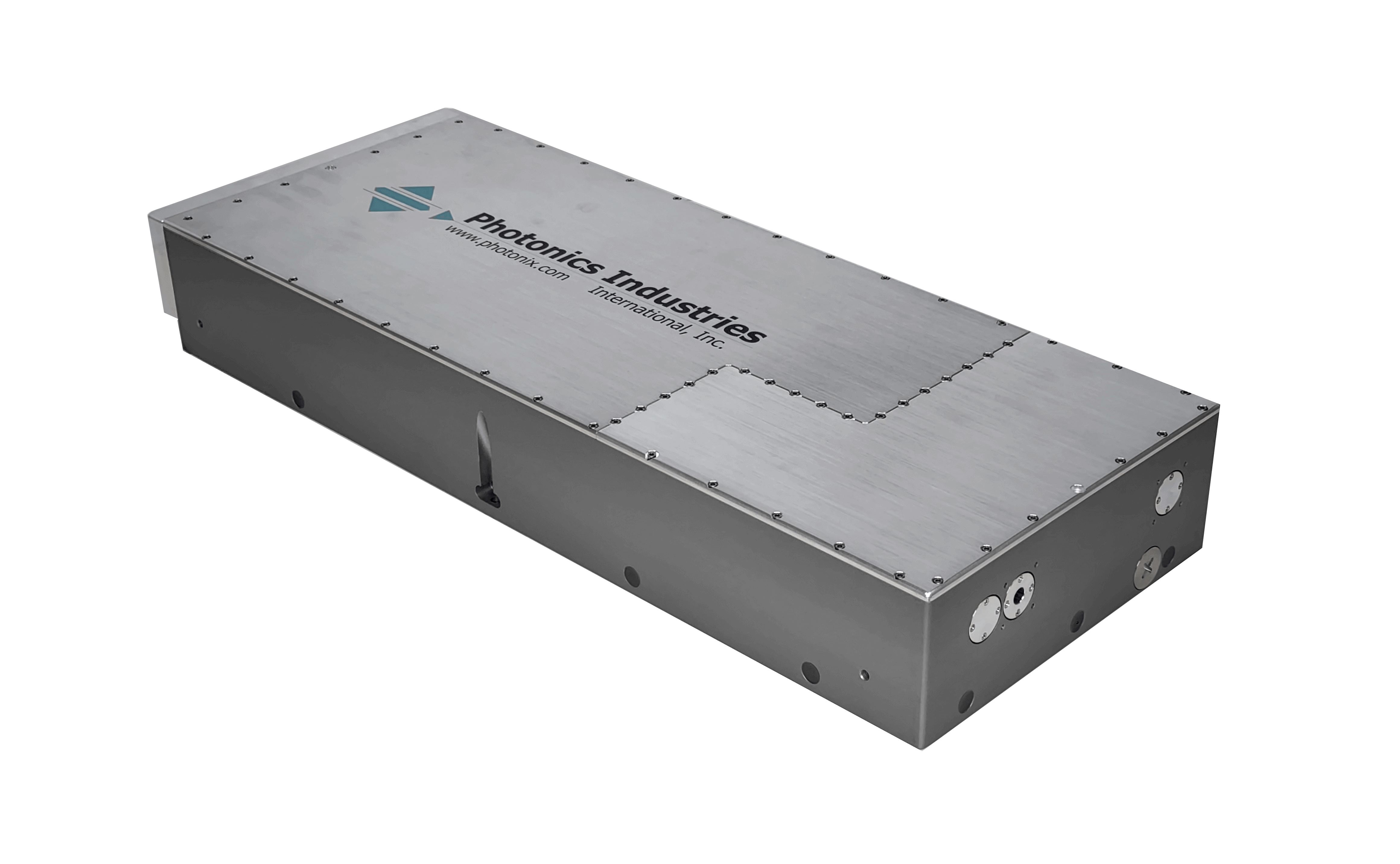

Subnanosecond Laser

SN-355-5 | SN-355-15 | SN-355-25|SN-355-35

Features

  • Up to 35W of power at 355nm
  • Sub ns Pulse Width
    • specifiable from 45ps to 1ns
  •  Repetition rate from Single shot to 8MHz
  • Excellent beam quality (TEM00 M²<1.3)
  • Closed loop chilled
  • Small compact all-in-one form factor
  • Diode pumped technology
  • Fundamental and other harmonic options available
